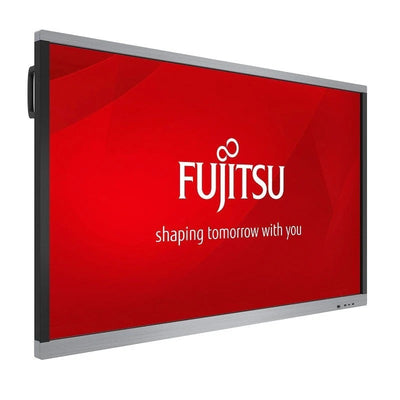

Fujitsu IW752DX 75” 4K UHD Interactive Panel Smart Whiteboard 高清 4K 75寸互動觸控智能顯示屏
Fujitsu Interactive Panel is the essential hub for modern meeting spaces as well as digitize classrooms.
Compared to projector-based systems, the Fujitsu Interactive Panel offers unparalleled visual
performance and fosters collaboration to elevate meeting and teaching efficiency.
Interactive display with 4k resolution
• Intuitive 50 points of touch
• Resistant to optical interference (use as usual under direct sunlight)
• Resistant to shielding
• Rapid response, fluent in writing & demonstration. Durable whiteboard surface
• AG tempered glass Mohs level 9. Multi OS + multi modules
• Seamless switching between OS
• Built-in Android + Pluggable PC module
• Concealed WIFI module compatible with WIFI 6 Standard
Picture performance
Panel backlit : DLED, VA
Screen surface treatment AG tempered glass Mohs level 9
Contrast 75” : 5000:1
Viewing angle (h/v) - typical 178°
Color performance 1.07 billion colors (10bit)
Brightness 400 cd/m² (w Glass, typ)
Flicker-free technology : Support
Low Blue Light Support
Anti-glare filter Support
Built-in Ambient Light Sensor Yes
Picture in Picture (PIP) mode Support, with touch
Size and resolution
Aspect ratio 16:9
Resolution (native) 3840 (H) x 2160 (V)
Picture size (H x V) 65”: 1,428.48 x 803.52 mm / 75”: 1,649.664 x 927.936 mm / 86”: 1,895.04 x 1,065.96 mm
Pixel pitch 65”: 0.37 2mm / 75”: 0.4296 mm / 86”: 0.4935 mm
Response time - typical 65”, 86”: 6.5ms 75”: 8ms
Refreshing frequency 60 Hz
Connectivity
DP 1 DP (4K)
HDMI 1 HDMI OUT (4K@60Hz), 4 x HDMI IN (HDMI 2.0)
USB 1 USB 2.0
4 USB 3.0 (including 2 USB ports in front)
USB Type-C
® In 2 USB Type-C
® (Front: PD 20V 5A, Rear 5V 3A)
USB Type-C
® Out 1 USB Type-C
®
Audio in 1 3.5 mm stereo phone jack
Audio output 1 3.5 mm stereo phone jack
RS232 control 1 RS232
LAN IN 1 GIGABIT LAN (RJ45)
LAN OUT 1 GIGABIT LAN (RJ45)
TOUCH OUT 2 TOUCH OUT (USB 2.0)
SPDIF 1 SPDIF
Wi-Fi Yes, dual band, support Wi-Fi 6
Bluetooth 5.0
Touch system
Touch system Sensing type Infrared recognition
Touch point 50 points touches
Minimum object size 2 mm
Writing height ≤1 mm
Writing double colors with double pens
simultaneously
Support
Touch tool Finger / Passive infrared pen
Response time ≤2.5 ms
Accuracy ±1 mm
Datasheet Fujitsu Interactive Panel IW652 DX/ IW752 DX/ IW862 DX
Fujitsu recommends Windows 11 Pro
3 of 7 © Fujitsu 2023
Communication mode Full-speed USB (driver free)
Realtime 4k screen capture and
annotation
Support
Audio
Sound channel 2.2 channel
Speaker 2×8W + 2×18W (Total 52W)
Sound pressure level 86dB
Peak power 108W
Microphone
Built-in microphone array 8
Audio pickup range 0-8 meters
Wireless screen mirroring
Wireless screen mirroring Support
PIN code connection mode Support both static and dynamic pin codes
Maximum number of split screens /
devices projecting to the panel
simultaneously (Panel Standalone Android
Mode)
16
Self-Hotspot screen mirroring Support
Native AirPlay protocol for screen
mirroring
Support
Native Chromecast protocol for screen
mirroring
Support
Native Miracast protocol for screen
mirroring
Support
Mirroring of panel display to client devices Support
Reversely control Windows / MacOS
during screen mirroring
Support, Client software required
Multi-Panels synchronization Support
Built-in moderator console Yes
Power consumption (typical)
Soft switch off ≤0.5 W
Overall power (max power) 65”: 415 W / 75”: 530 W / 86”: 570 W
Electrical values
Rated voltage range 100 V – 240 V
Rated frequency range 50 Hz – 60 Hz, 65”:4.0 A / 75”:5.0 A / 86”:6.0 A
Quality and reliability
MTBF 50,000 h
System
CPU (Central Processing Unit) A76 x 4 + A55 x 4
GPU (Graphics Processing Unit) Mali G610-MP4
System memory 8 GB
Storage 64 GB
OS Android 13.0
Dimensions / Weight / Environmental
Key location & number Front physical keys, 1
Dimension L x H x D 65”: 1,488.4 x 908 x 86 mm / 75”: 1,709.4 x 1,031 x 85.7 mm / 86”: 1,957 x 1,171 x 86 mm
Dimension (package) L x W x H 65”: 1,628 x 208 x 1,005 mm / 75”: 1,863 x 225 x 1,148 mm / 86”: 2,110 x 225 x 1,291 mm
Net weight 65”: 38.67 kg / 75”: 51.46 kg / 86”: 63.55 kg
Gross weight 65”: 48.25 kg / 75”: 60.75 kg / 86”: 80.15 kg
Datasheet Fujitsu Interactive Panel IW652 DX/ IW752 DX/ IW862 DX
Fujitsu recommends Windows 11 Pro
4 of 7 © Fujitsu 2023
Thickness of machine and wall mount 65”: 116 mm (9,060G) / 75”: 115.7 mm (9,060G) / 86”: 116 mm (9,060G)
Wall-hanging screw spec M8 x 25 mm
VESA 65”: 600 x 400 mm / 75”: 800 x 400 mm / 86”: 800 x 600 mm
Miscellaneous
Color Black
Password lock Support
USB key Panel lock Support
Magnetic pen holder Yes
Smart shared USB Support, all USB 3.0 ports
Switch sources Support
Scheduled power up / shutdown Support
Multiple-windows Support
Cross Platforms and Cross Applications
Pop-Quiz Tool
Built-in, Realtime and not required same network/ Wi-Fi
Accessories
AC power cable British Standard Power Cord (3 meters), EU Power Cord (3 meters)
USB cable 1 x USB 2.0 (5 meters)
HDMI cable 1 x HDMI (3 meters)
Writing pen 2
Remote control 1
Operation instruction 1
Order information
Order code 65”: HLIWB0044A-01/ 75”: HLIWB0047A-01/ 86”: HLIWB0049A-01
EAN code 65”: 8888551585465/ 75”: 8888551585472/ 86”: 8888551585489
Warranty
Standard warranty 3 years (depending on country)
Service level On-site
Datasheet Fujitsu Interactive Panel IW652 DX/ IW752 DX/ IW862 DX
Fujitsu recommends Windows 11 Pro
5 of 7 © Fujitsu 2023
Software Features
White Boarding
Multiple pages note taking Support
Import files in multiple formats Support
Export notes in multiple formats Support
Save notes to OneDrive / Google Drive Support
Built-in background templates Yes
Customizable background Support, 4K resolution
Built-in 2D / 3D object drawing tools Yes
Expandable page size Support
Realtime 4k screen capture and
annotation
Support
Intelligent handwriting recognition Support in Windows Mode
Smart objective insertion Support in Android Mode
Real-time whiteboard co-authoring Support
Cloud based whiteboard co-authoring Support
Annotation toolbar Left / right / floating / disabled
Whiteboard content sharing- via email Support
Whiteboard content sharing- via QR code Support in Android / Windows Mode
Wireless Screen Mirroring
Wireless screen mirroring Support
PIN code connection mode Support both static and dynamic pin codes
Maximum number of split screens/
devices projecting to the panel
simultaneously (Panel Standalone Android
Mode)
9
Maximum number of split screens/
devices projecting to the panel
simultaneously (Panel Connected to PC or
with slot-in PC Windows Mode)
Unlimited (depending on network bandwidth)
Self-Hotspot screen mirroring Support
Native AirPlay protocol for screen
mirroring
Support
Native Chromecast protocol for screen
mirroring
Support
Native Miracast protocol for Screen
Mirroring
Support
Mirroring of panel display to client devices Support
Support Screen Mirroring thru internet to
Panel
Support (Windows client)
Max number of client devices Unlimited (depending on network bandwidth)
Reversely control Windows / macOS
during Screen Mirroring
Support
client software required
Remotely annotate the panel from the
connected user’s device
Support
OnScreen Moderator Control Console for
managing screen mirroring connections /
users.
Support
Datasheet Fujitsu Interactive Panel IW652 DX/ IW752 DX/ IW862 DX
Fujitsu recommends Windows 11 Pro
6 of 7 © Fujitsu 2023
OnScreen Moderator Control Icon on / off
option
Support
Invite client device to screen mirroring Support
Multi-Panels Display Synchronization Support
Multi-Panel Display Synchronization
Authorization Control
Support
Mobile visualizer feature Yes
Air Mouse / Keyboard Support
Wireless projection via QR Code Support
Wireless projection across subnet Support
Screen Recording
Screen Recording Support
Floating tool menu
Floating tool menu Left / right / floating / disabled, position adjustable
Centralized Panel Management (MDM, Optional module)
Remotely, batch mode install / uninstall
applications
Support
Remotely execute Android commands,
including workflows
Support
Remote installation of applications from
Google play store
Support
Remote real-time screen control / view Support
Remote batch process Support
Broadcast notice (text and image) to all or
selected interactive panels
Support
Remote Power management Support power on / off, restart, wake on LAN
Device-level usage history and reports Support
Low-blue light Mode
Low-blue light Mode Supported in Android mode
File Management
File Explorer Yes, preinstalled
Web Browser
Web Browser Yes, preinstalled
Media Player
Video:
MPEG-1/2, DivX® (1/2/3/4/5/6), MPEG-4 ASP, XviD, 3ivX D4, H.261, H.263 / H.263i, H.264 /
MPEG-4 AVC, Cinepak, Theora, Dirac / VC-2, MJPEG (A/B), WMV 1/2, WMV 3 / WMV-9 / VC1, Sorenson 1/3, DV, On2 VP3/VP5/VP6, Indeo Video v3 (IV32), Real Video (1/2/3/4).
Codec supported* Audio:
MPEG Layer 1/2, MP3 - MPEG Layer 3, AAC - MPEG-4 part3, Vorbis, AC3 - A/52, E-AC-3, MLP
/ TrueHD>3, DTS, WMA 1/2, WMA 3, FLAC, ALAC, Speex, Musepack / MPC, ATRAC 3,
Wavpack, Mod, TrueAudio, APE, Real Audio, Alaw/µlaw, AMR (3GPP), MIDI, LPCM, ADPCM,
QCELP, DV Audio, QDM2/QDMC, MACE.
*Powered by VLC Player for Android
